Product Description

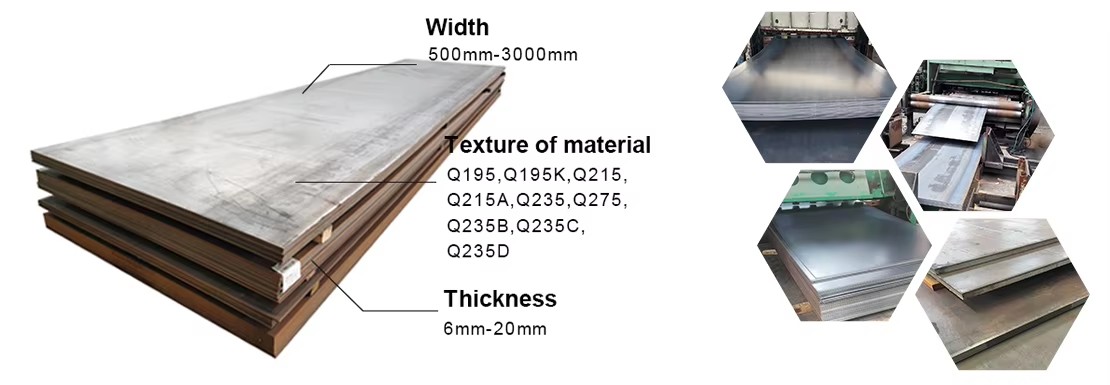

Product name	Carbon steel plate
Shape	Sheet/Board
Standard	ASTM、GB、JIS、EN、DIN、GB711-88、YB474-64

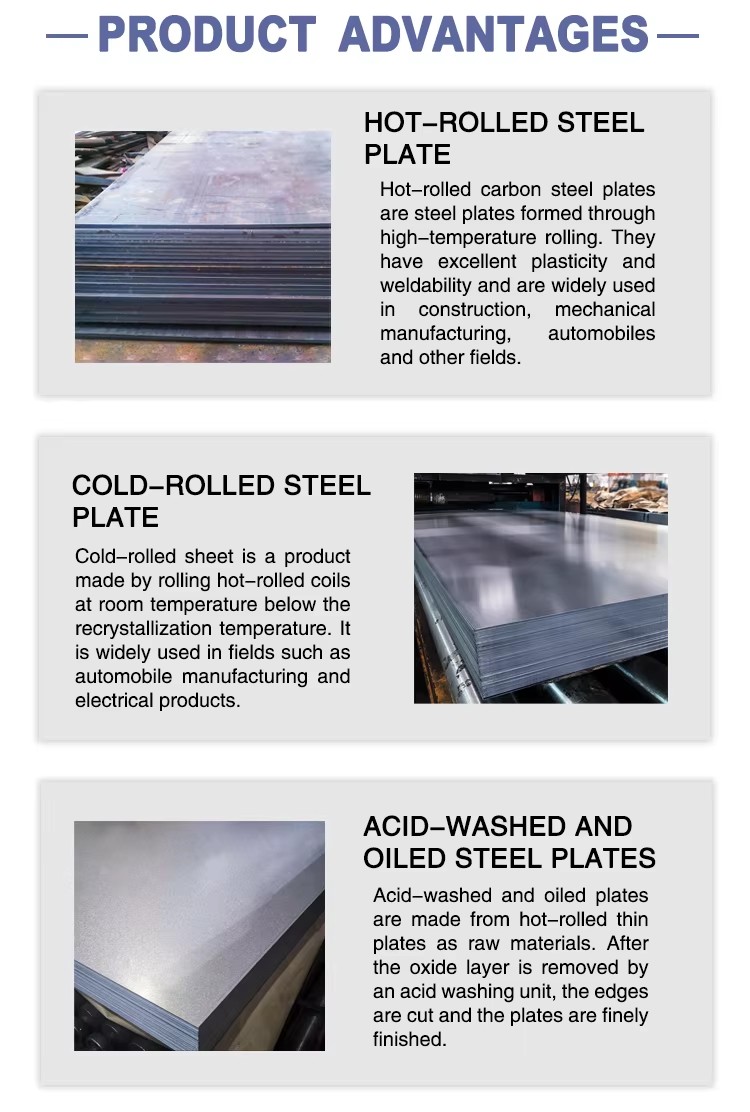

Technology	Hot rolling, cold rolling
Type	Low carbon steel, medium carbon steel, high carbon steel
Width	450-4800mm
Length	3000-25000mm
Thickness	3-200mm
Characteristics	High strength, good toughness and easy to process
Application	Bridges, boilers, automobile manufacturing, pressure vessels, etc

Chemical Composition and Mechanical Properties of Selected Carbon Steel Plates

Carbon Steel Type	Grade / Standard	Chemical Composition (wt.%, max unless specified)				Mechanical Properties (Minimum Values for Common Thickness)
Carbon Steel Type	Grade / Standard	C	Mn	P	S	Yield Strength (MPa)	Tensile Strength (MPa)
Ordinary Carbon Structural Steel	ASTM A36	0.26	-	0.04	0.05	250	400 - 550
	JIS G3101 SS400	-	-	0.05	0.05	245 (t≤16mm)	400 - 510
	EN 10025-2 S235JR	0.17	1.4	0.045	0.045	235	360 - 510
Quality Carbon Structural / Pressure Vessel Steel	ASTM A516 Gr.70	0.27	0.85 - 1.20	0.035	0.035	260	485 - 620
Quality Carbon Structural / Pressure Vessel Steel	EN 10028-2 P355GH	0.16	0.90 - 1.40	0.025	0.015	355 (t≤16mm)	470 - 630
Medium Carbon Steel	SAE/AISI 1045	0.43 - 0.50	0.60 - 0.90	0.04	0.05	~310 (as rolled, typical)	570 - 700 (as rolled)
Medium Carbon Steel	EN 10083-2 C45E	0.42 - 0.50	0.50 - 0.80	0.03	0.035	340 (normalized, typical min)	620 - 770 (normalized)
High-Strength Low-Alloy Steel (HSLA)	ASTM A572 Gr.50	0.23	1.35	0.04	0.05	345	450
	JIS G3106 SM570	0.2	1.6	0.04	0.04	460 (t≤16mm)	570 - 720
	EN 10025-2 S460N	0.2	1.7	0.03	0.025	460 (t≤16mm)	550 - 720

Carbon Content Classification	Quality & Application Classification	Hot-Rolled State	Cold-Rolled State
Low-Carbon Steel (C ≤ 0.25%) Characteristics: Excellent plasticity, toughness, and weldability	Ordinary Structural/Commercial Grade (Primarily guarantees mechanical properties, lowest cost)	• ASTM A36 • SS400 (JIS) • S235JR (EN) • Q235A/B (GB)	• DC01 (EN) •SPCC (GB/JIS) • CR2/CR3 (ASTM)





	Quality Structural/Drawing Grade (Strict control of both composition & properties, good formability)	• A572 Gr.50 (ASTM) • SM490A (JIS) • S355JR (EN) • Q355B/C/D (GB)	• DC03, DC04 (EN) • SPCD (GB/JIS) • DQ, DDSK (ASTM)





	Advanced Forming/Deep Drawing Grade (IF Steel) (Ultra-deep drawing, non-aging)	Rarely used directly as sheet. Typically serves as the hot-rolled coil feedstock for cold-rolled deep-drawing steels.	• DC05, DC06 (EN) • SPCE, SPCF (JIS/GB) • EDDQ/S-EDDQ (Generic)




	High-Strength Low-Alloy (HSLA) / Advanced High-Strength Steel (AHSS) (High strength, balances formability & weldability)	• A572 Gr.60/65 (ASTM) • S420MC/S460MC (EN) • Q390/Q420/Q460 (GB)	• HC340/590DP (GB, Dual Phase steel) • DP600, TRIP800 (Generic) • HCT600X (EN)





Medium-Carbon Steel (0.25% < C ≤ 0.60%) Characteristics: Good strength-toughness combination achievable via heat treatment	Machinery Manufacturing Steel (Used for core load-bearing parts after quenching & tempering)	• 1045 (SAE) • S45C (JIS, hot-rolled material) • 45# (GB, hot-rolled plate/flat bar)	• 1045 (SAE, cold-rolled strip) • S45C (JIS, cold-rolled precision material) • 45# (GB, cold-rolled precision stock)





High-Carbon Steel (C > 0.60%) Characteristics: High hardness, high wear resistance, high brittleness	Tool & Special Purpose Steel (Belongs to special steel category)	• 65Mn (GB, spring steel flat bar) • 1095 (SAE) • T8, T10 (GB, Tool Steel)	Very rare. May exist as cold-rolled strip or thin sheet for making high-precision spring strips, blades, or special wear-resistant shims.

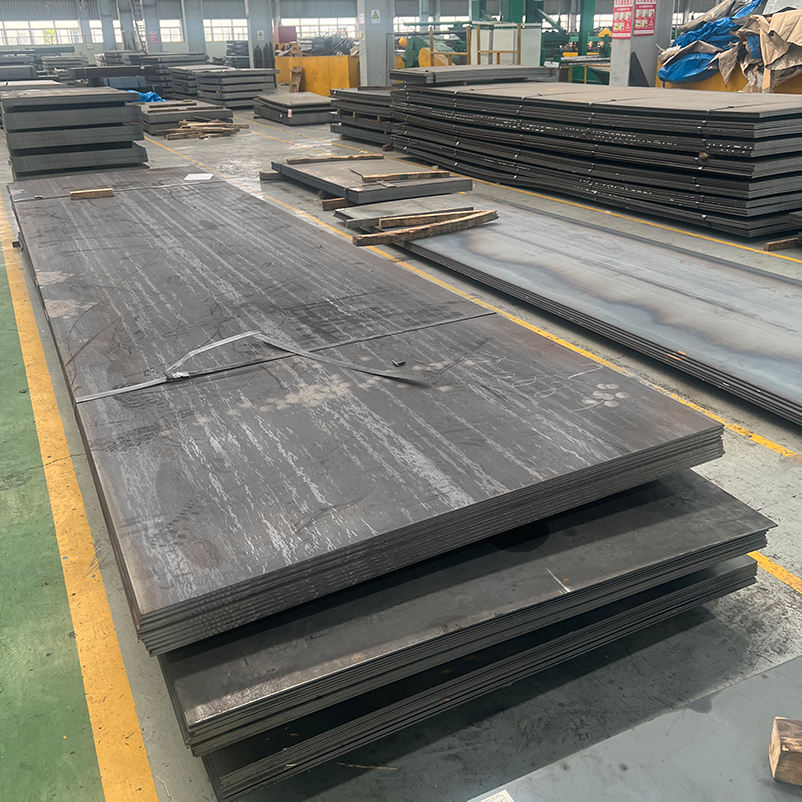

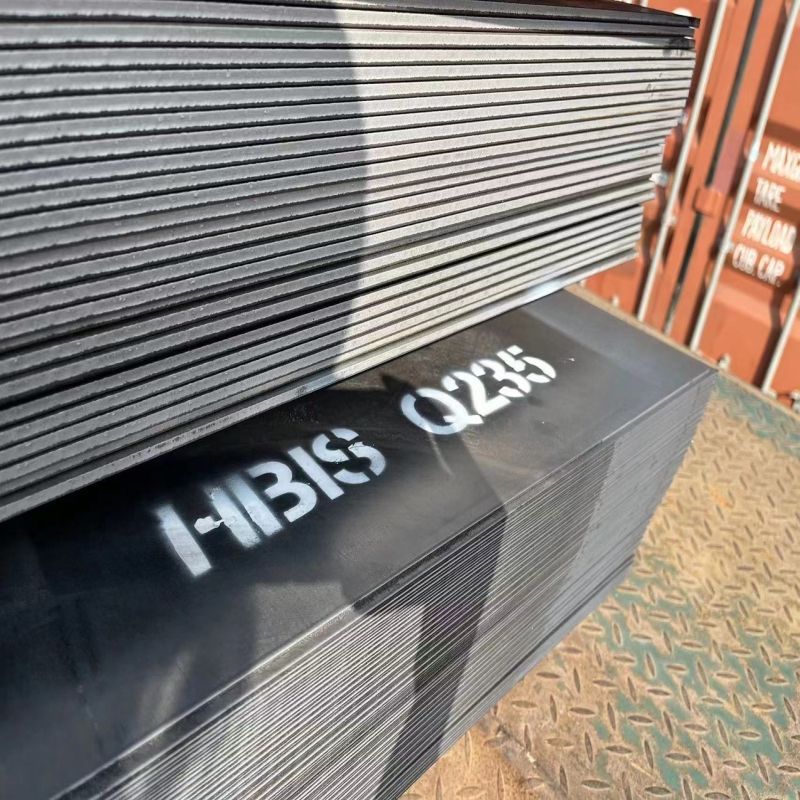

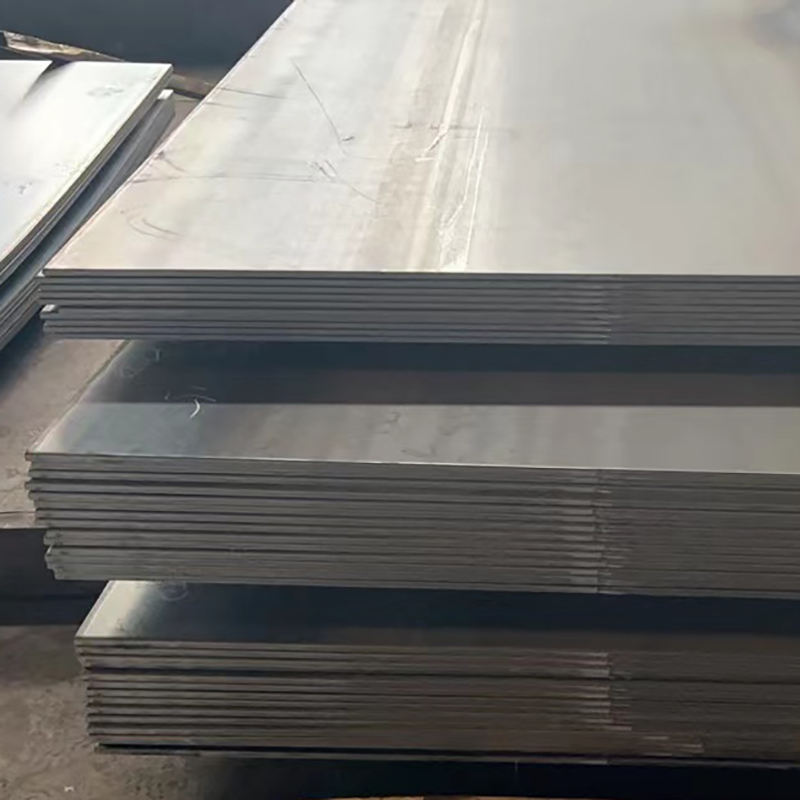

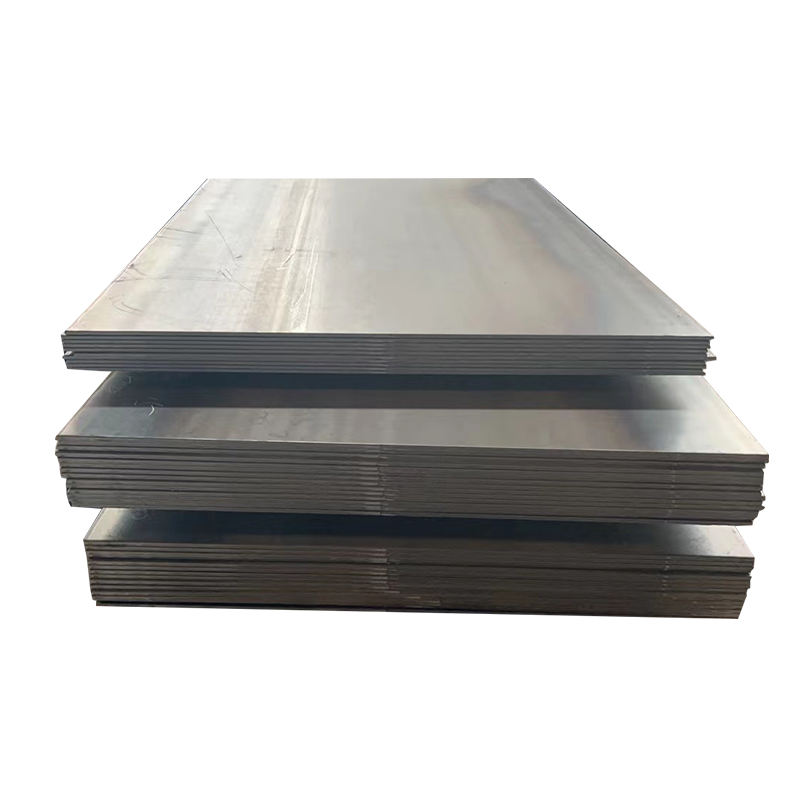

Product display

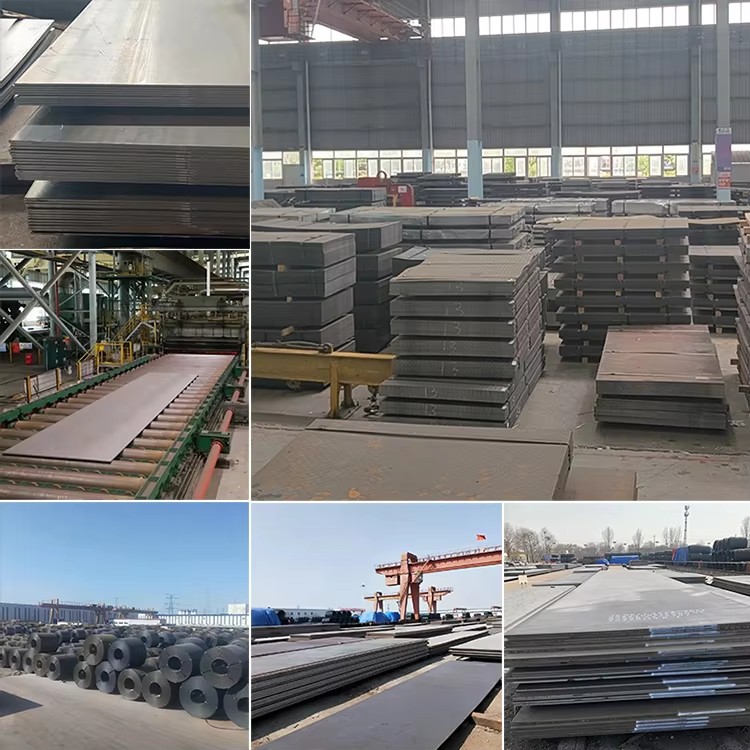

Own factory

Product Application
